Introduction to the UNIX shell

Modified from lessons for Data Carpentry with original contributions from Tracy Teal, Paul Wilson, Milad Fatenejad, Sasha Wood and Radhika Khetani.

Learn more:

Objectives

  • What is the shell?
  • How do you access it?
  • Connecting to cloud computing resources
  • How do you use it?
    • Getting around the Unix file system
    • looking at files
    • manipulating files
    • automating tasks
  • What is it good for?
  • Where are resources where I can learn more? (because the shell is awesome)

What is the shell?

The shell is a program that presents a command line interface which allows you to control your computer using commands entered with a keyboard instead of controlling graphical user interfaces (GUIs) with a mouse/keyboard combination.

Why should you care?

  • For 99% of bioinformatics tools, you have to use the shell (the command line). There is no graphical interface.
  • The shell gives you power. The command line gives you the power to do your work more efficiently and more quickly. When you need to do things tens to hundreds of times, knowing how to use the shell is transformative.
  • You have to use the shell to connect to remote computers.

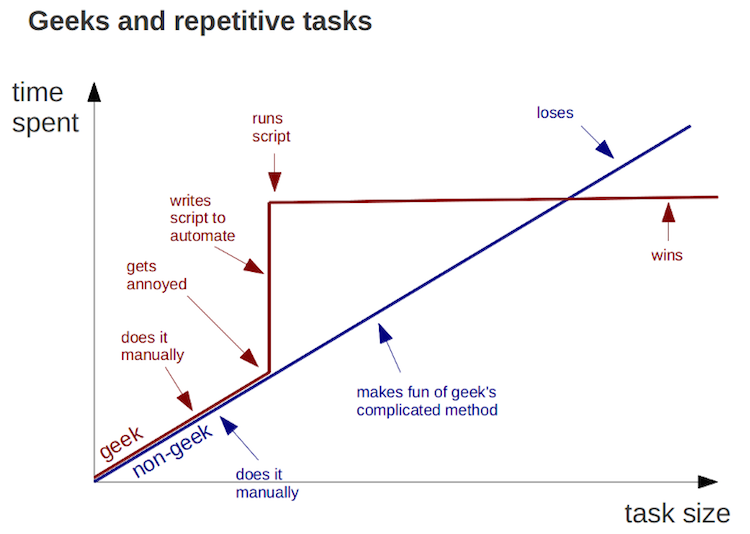

Automation

Have 10,000,000 files to rename, read in, analyze, and visualize? It's easy to automate things with the shell.

Automation

How to access the shell

You access the shell through a program called a Terminal. We're going to use a terminal to connect to the shell of a remote computer. The terminal program is built-in on Mac and Linux. For Windows, you'll have to download a separate program called a terminal emulator that will allow you to connect to remote computers.

Mac

On Mac the shell is available through Terminal:

Applications -> Utilities -> Terminal

Go ahead and drag the Terminal application to your Dock for easy access.

Windows

On Windows machines we'll be using a terminal emulator called PuTTY.

More resources on the shell

Cheat sheets:

Web sites where you can see what the different components of a shell command are doing:

Connecting to cloud computing resources

Cloud computing means different things to different people. There's Software-as-a-Service (Saas) like Gmail, Facebook, etc., that most people think of when they think of cloud computing. Here, we're strictly talking about Infrastructure-as-a-Service (IaaS). That is, we're using (or renting) computing infrastructure that we don't own.

We'll cover in class how to start and connect to an Amazon Web Services EC2 instance. It's essential that you stop or terminate any running AWS instances after you're done with them.

Shell basics

Get some data files to work with

We will spend most of our time learning about the basics of the shell by manipulating some experimental data. If you aren't using the virtual machine image you'll need to download the data for the tutorial. For this you'll need internet access, because you're going to get it off the web.

Open the shell and type the commands:

cd
git clone https://github.com/bioconnector/workshops.git

This command will grab all of the data needed for this workshop. It's using something called git that's used for version control, but we won't talk about that here.

If you're already using the machine image you might need to update things.

cd workshops
git pull
cd

Moving around and listing files

We'll start out by moving around the file system and listing files. Today we're going to go through using the command line. These commands are in the README.md file and on your handout (fixme).

Let's go in to that directory we just downloaded:

cd workshops

cd stands for 'change directory'. A directory is the same thing as a folder. We just call folders directories in the Linux/UNIX world. Here we just entered the workshops directory. If we were doing this on a graphical shell we would have double-clicked on a little folder icon. It's the same idea.

In this directory, there should be some things we just downloaded. Let's check. Type:

ls

ls stands for 'list' and it lists the contents of a directory. This woudld be what you would see in the folder if you were doing this graphically on a desktop.

Blue things are directories, white things are files.

Now, let's go look in the 'data' directory in the 'shell' lesson. It's nested a few directories deep. To get to it, let's enter and list each directory like so:

cd lessons
ls
cd shell
ls
cd data
ls

In there, all mixed up together are regular files, directories, and an executable program. If we want to know which is which, we can type:

ls -F

Things with a / after it is a directory.
Things with a * after them are programs.
It there's nothing there it's a regular file.

You can also use the command:

ls -l

to see whether items in a directory are files or directories. It gives a lot more information too, such as the size of the file, who owns the file, etc.

So, we can see that we have several files, directories and a program. Great!

Options

Most programs take additional options that control their exact behavior. For example, -F and -l are options for ls. The ls program, like many programs, take a lot of options. But how do we know what the options are to particular commands?

Most commonly used shell programs have a manual. Let's open the manual page for ls.

You can access the manual using the man program.

man ls

Space key goes forward
Or use the arrow keys to scroll up and down.
When you are done reading, just hit q to quit.

Programs that are run from the shell can get extremely complicated. To see an example, open up the manual page for the find program. No one can possibly learn all of these arguments, of course. So you will probably find yourself referring back to the manual page frequently.

The Unix directory file structure (a.k.a. where am I?)

As you've already just seen, you can move around in different directories or folders at the command line.

When you're working with bioinformatics programs, you're working with your data and it's key to be able to have that data in the right place and make sure the program has access to the data. Many of the problems people run in to with command line bioinformatics programs is not having the data in the place the program expects it to be.

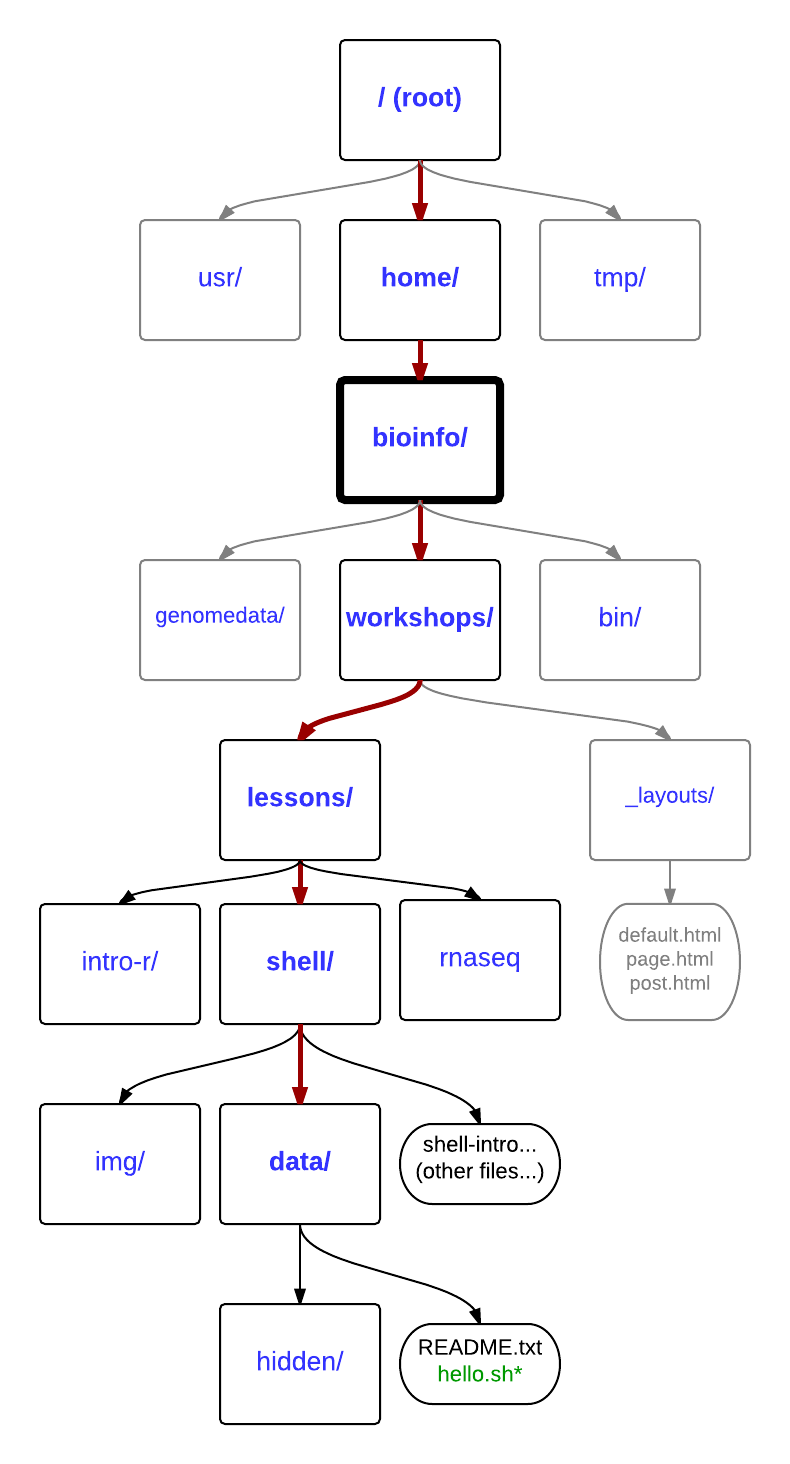

Let's draw out what we just did, and some of the other files and folders we could have clicked on.

This is called a hierarchical file system structure, like an upside down tree with root (/) at the base that looks like this.

Unix

That (/) at the base is often also called the 'top' level.

When you are working at your computer or log in to a remote computer, you are on one of the branches of that tree, your home directory: /home/username.

If we type cd by itself:

cd

This puts you in your home directory. That's /home/username

EXERCISE 1

  • Using cd and ls, go in to the workshops/shell/data directory and list its contents.
  • How many files, how many directories and how many programs are there?

Where am I?

Let's also check to see where we are. Sometimes when we're wandering around in the file system, it's easy to lose track of where we are and get lost.

If you want to know what directory you're currently in, type:

pwd

This stands for 'print working directory'. That's the directory you're currently working in, and it's "printed" to the screen.

What if we want to move back up and out of the data directory? To go 'back up a level' we need to use ..

cd ..

Now do ls and pwd. See now that we went back up in to the 'shell' directory. .. means "the directory above," or "the parent directory."

EXERCISE 2

Let's go on a file hunt. Move around in the shell/data/hidden directory and try to find the file youfoundit.txt.

Examining the contents of other directories

By default, the ls commands lists the contents of the working directory (i.e. the directory you are in). You can always find the directory you are in using the pwd command. However, you can also give ls the names of other directories to view. Navigate to the home directory if you are not already there using cd by itself, then ls the contents of the "workshops/lessons/shell" directory:

cd
ls workshops/lessons/shell

This listed the contents of workshops/lessons/shell without navigating there.

The cd command works the same way. Try entering:

cd
ls workshops/lessons/shell/data/hidden

and you will jump directly to hidden without having to go through the intermediate directories.

EXERCISE 3

Try finding the anotherfile.txt file without changing directories.

HUGE Shortcut: Tab Completion

Navigate to the home directory. Typing out directory names can waste a lot of time. When you start typing out the name of a file or directory, then hit the tab key, the UNIX shell will try to fill in the rest of the directory name. For example, enter:

cd
cd w<tab>

The shell will fill in the rest of the directory name for "workshops". Now go to workshops/lessons/rnaseq/data

cd
cd wo<tab>le<tab>rna<tab>da<tab>

Now type ls uvb and hit tab twice.

ls uvb<tab><tab>

When you hit the first tab, nothing happens. The reason is that there are multiple directories in the home directory which start with uvb. Thus, the shell does not know which one to fill in. When you hit tab again, the shell will list the possible choices.

Tab completion can also fill in the names of programs. For example, enter e<tab><tab>. You will see the name of every program that starts with an e. One of those is echo. If you enter ec<tab> you will see that tab completion works.

Full vs. Relative Paths

The cd command takes an argument which is the directory name. Directories can be specified using either a relative path or a full path. The directories on the computer are arranged into a hierarchy. The full path tells you where a directory is in that hierarchy. Navigate to the home directory. Now, enter the pwd command and you should see:

/home/username

which is the full name of your home directory. This tells you that you are in a directory called username, which sits inside a directory called home which sits inside the very top directory in the hierarchy. The very top of the hierarchy is a directory called / which is usually referred to as the root directory. So, to summarize: username is a directory in home which is a directory in /.

Now enter the following command:

cd /home/bioinfo/workshops/lessons/shell/data/hidden

This jumps to hidden. Now go back to the home directory (cd). We saw earlier that the command:

cd workshops/lessons/shell/data/hidden

had the same effect - it took us to the hidden directory. But, instead of specifying the full path, we specified a relative path. In other words, we specified the path relative to our current directory. A full path always starts with a /. A relative path does not.

A relative path is like getting directions from someone on the street. They tell you to "go right at the Stop sign, and then turn left on Main Street". That works great if you're standing there together, but not so well if you're trying to tell someone how to get there from another country. A full path is like GPS coordinates. It tells you exactly where something is no matter where you are right now.

You can usually use either a full path or a relative path depending on what is most convenient. If we are in the home directory, it is more convenient to just enter the relative path since it involves less typing.

Over time, it will become easier for you to keep a mental note of the structure of the directories that you are using and how to quickly navigate them.

EXERCISE 4

  • List the contents of the /bin directory. Do you see anything familiar in there?

Saving time with shortcuts and wild cards

Shortcuts

There are some shortcuts which you should know about. Dealing with the home directory is very common. In the shell the tilde character, ~, is a shortcut for your home directory.

ls ~

Try it even when you're not in your home directory:

cd
cd workshops

Then enter the command:

ls ~

This prints the contents of your home directory, without you having to type the full path. The shortcut .. always refers to the directory above your current directory.

ls ..

prints the contents of the /home/username/. You can chain these together, so:

ls ../../

prints the contents of /home/. Finally, the special directory . always refers to your current directory. So, ls, ls ., and ls ././././. all do the same thing, they print the contents of the current directory. This may seem like a useless shortcut right now, but we'll see when it is needed in a little while.

To summarize, while you are in the workshops directory, the commands ls ~, ls ../, and ls /home/bioinfo all do exactly the same thing.

Our data set: FASTQ files

In this example we're going to use some RNA-seq data that we'll actually analyze later on. The data come from RNA-seq done on skin cells treated with ultraviolet light versus controls (paper; data).

We did sequencing, and what we have here are just reads that came from a 100 MB region on chromosome 4. We want to be able to look at these files and do some things with them.

Wild cards

Navigate to the workshops/lessons/rnaseq/data directory from your home. This directory contains our FASTQ files and some other ones we'll need for analyses. If we type ls, we will see that there are several files in there. Some of the end with .fastq.gz. These are compressed fastq files.

The * character is a shortcut for "everything". Thus, if you enter ls *, you will see all of the contents of a given directory.

ls *fastq.gz

This lists every file that ends with a fastq.gz. This command:

ls /usr/bin/*.sh

Lists every file in /usr/bin that ends in the characters .sh.

If we wanted to list just the controls or just the uvb-treated samples, we could do this:

ls ctl*
ls uvb*

So how does this actually work? Well...when the shell sees a word that contains the * character, it automatically looks for filenames that match the given pattern. In this case, it identified 3 such files. Then, it replaced the ctl* with the list of files, separated by spaces.

Because we'll use these files later, let's go ahead and extract or uncompress these files. To compres a text file we would use gzip. To extract, we'll use gunzip. Let's extract all the files that end in .gz. This will extract both the fastq files and the counts.txt file as well:

gunzip *.gz

Now, time for some more practice with wildcards.

EXERCISE 5

Do each of the following using a single ls command without navigating to a different directory. - List all of the files in /bin that start with the letter 'c' - List all of the files in /bin that contain the letter 'a' - List all of the files in /bin that end with the letter 'o'

Command History

You can easily access previous commands. Hit the up arrow. Hit it again. You can step backwards through your command history. The down arrow takes your forwards in the command history.

Control-C will cancel the command you are writing, and give you a fresh prompt.

You can also review your recent commands with the history command to see a numbered list of commands you've run.

history

You can reuse one of these commands directly by referring to the number of that command. If your history looked like this:

259  ls *
260  ls /usr/bin/*.sh
261  ls ctl*

then you could repeat command #260 by simply entering:

!260

EXERCISE 6

Find the line number in your history for the last exercise (listing files in /bin) and reissue that command.

Examining Files

We now know how to switch directories, run programs, and look at the contents of directories, but how do we look at the contents of files?

The easiest way to examine a file is to print out all of the contents using the program cat. Enter the following command:

cat ctl1.fastq

This prints out the contents of the ctl1.fastq file.

EXERCISE 7

  • Print out the contents of the workshops/lessons/rnaseq/data/coldata.csv file. What does this file contain?
  • Without changing directories, use one short command to print the contents of all of the files in the ~/workshops/posts_/ directory.

Make sure we're in the right place for the next set of the lessons. We want to be in the rnaseq data directory (workshops/lessons/rnaseq/data). Check if you're there with pwd and if not navigate there. One way to do that would be

cd ~/workshops/lessons/rnaseq/data

cat is a terrific program, but when the file is really big, it can be annoying to use.

The program, less, is useful when files are big and you want to be able to scroll through them.

less ctl1.fastq

less opens the file, and lets you navigate through it. The commands are identical to the man program.

Some commands in less

Key Action
space go forward
b go backwards
g go to the beginning
G go to the end
q quit

less also gives you a way of searching through files. Just hit the "/" key to begin a search. Enter the name of the word you would like to search for and hit enter. It will jump to the next location where that word is found. Try searching ctl1.fasta for the the sequence "GATTACA". If you hit "/" then "enter", less will just repeat the previous search. less searches from the current location and works its way forward. If you are at the end of the file and search for "GATTACA", less will not find it. You need to go to the beginning of the file with the g key in less, and start the search from there.

Remember, the man program actually uses less internally and therefore uses the same commands, so you can search documentation using "/" as well!

There's another way that we can look at files, and in this case, just look at part of them. This can be particularly useful if we just want to see the beginning or end of the file, or see how it's formatted.

The commands head and tail let you look at the beginning and end of a file respectively.

head ctl1.fastq
tail ctl1.fastq

The -n option to either of these commands can be used to print the first or last n lines of a file. If we want to see the first read in the file, try this:

head -n 4 ctl1.fastq
tail -n 4 ctl1.fastq

Searching files

We showed a little how to search within a file using less.

We can search within files without even opening them, using grep. Grep is a command-line utility for searching plain-text data sets for lines matching a string or regular expression.

Let's find all the lines in ctl1.fastq that contain the sequence motif "GATTACA."

grep GATTACA ctl1.fastq

We get back just the sequence line, but what if we wanted all four lines, the whole part of that FASTQ sequence, back instead.

grep -B 1 -A 2 GATTACA ctl1.fastq

The -A flag stands for "after match" so it's returning the line that matches plus the two after it. The -B flag returns that number of lines before the match, so that's returning the fastq header.

EXERCISE 8

Search for the sequence 'GATTTTTACA' (GATTACA with 5 T's instead of 2) in ctl1.fastq file and in the output have the sequence name. The output should look like this:

@SRR1145047.5880759
AAGCTAAAAAAAAAATGGATGTTTCAGTTAAATGTTTTAAAGAGGTACAGATTTTTACAAGGACATAATATAAG

Next, search for that sequence in all the FASTQ files.

Redirection & Pipes

We're excited we have all these sequences that we care about that we just got from the FASTQ files. Perhaps that was some really important motif that is going to help us answer some important question. But all those sequences just went whizzing by with grep. How can we capture them?

We can do that with something called "redirection". The idea is that we're redirecting the output to the terminal (all the stuff that went whizzing by) to something else. In this case, we want to write it to a file, so that we can look at it later.

We do this with: >.

Let's try it out and put all the sequences that contain 'GATTACA' from all the files in to another file called "gattaca-reads.txt".

grep GATTACA *.fastq > gattaca-reads.txt

The prompt should sit there a little bit, and then it should look like nothing happened. But type ls. You should have a new file called "gattaca-reads.txt". Take a look at it and see if it has what you think it should.

ls
less gattaca-reads.txt

There's another useful redirection command that we're going to show, and that's called the pipe: |. It's probably not a key on your keyboard you use very much. What | does is take the output that scrolling by on the terminal and then can run it through another command. When it was all whizzing by before, we wished we could just slow it down and look at it, like we can with less. Well it turns out that we can! We pipe the grep command through less

The pipe '|' takes the output of the first thing and then puts it in to the second part

grep GATTACA *.fastq | less

Now we can use the arrows to scroll up and down and use q to get out.

There's another command called wc. wc stands forword count. It counts the number of lines or characters. So, we can use it to count the number of lines we're getting back from our grep command. And that will tell us how many sequences we're finding with that motif across all the files.

grep GATTACA *.fastq | wc

That tells us the number of lines, words and characters in the file. If we just want the number of lines, we can use the -l flag for lines.

grep GATTACA *.fastq | wc -l

You could have piped the output to a file like you did the first time and ran wc on that file:

wc gattaca-reads.txt

But using the pipe you didn't need to create the intermediate file. Pipes are really powerful for stringing together these different commands, so you can do whatever you need to do.

The philosophy behind these command line programs is that none of them really do anything all that impressive. BUT when you start chaining them together, you can do some really powerful things really efficiently. If you want to be proficient at using the shell, you must learn to become proficient with the pipe and redirection operators.

For example, draw a cow saying the largest word in the english language that contains the word "purple":

# Read in the system's dictionary.
cat /usr/share/dict/words
# grep for "purple"
cat /usr/share/dict/words | grep purple
# count letters in each word
cat /usr/share/dict/words | grep purple | awk '{print length($1), $1}'
# numeric sort
cat /usr/share/dict/words | grep purple | awk '{print length($1), $1}' | sort -n
# take the last line
cat /usr/share/dict/words | grep purple | awk '{print length($1), $1}' | sort -n | tail -n 1
# cut out the second field (-f 2) if the file were delimited by a space (-d " ")
cat /usr/share/dict/words | grep purple | awk '{print length($1), $1}' | sort -n | tail -n 1 | cut -d " " -f 2
# make the cow say it
cat /usr/share/dict/words | grep purple | awk '{print length($1), $1}' | sort -n | tail -n 1 | cut -d " " -f 2 | cowsay

This program piped together 7 UNIX programs (cat, grep, awk, sort, tail, cut, cowsay), each of which does a very small job on its own, and strung them together to do something pretty powerful (as silly as it may be).

 _____________
< unimpurpled >
 -------------
        \   ^__^
         \  (oo)\_______
            (__)\       )\/\
                ||----w |
                ||     ||

Creating, moving, copying, and removing

Now we can move around in the file structure, look at files, search files, redirect. But what if we want to do normal things like copy files or move them around or get rid of them. Sure, if we had a desktop, we could do most of these things without the command line, but what fun would that be?! Besides it's usually faster to do it at the command line, or you'll be on a remote server like Amazon where you won't have another option.

The coldata.csv file tells us which sample names are which treatment (in this example the filenames are pretty informative, but when they come off the sequencer usually they won't be). This is a really important file, so we want to make a copy so we don't lose it.

Lets copy the file using the cp command. The cp command backs up the file. Navigate to the rnaseq/data directory and enter:

cp coldata.csv coldata.csv-backup

Now coldata.csv-backup has been created as a copy of coldata.csv.

Let's make a backup directory where we can put this file.

The mkdir command is used to make a directory. Just enter mkdir followed by a space, then the directory name.

mkdir backup

We can now move our backed up file in to this directory. We can move files around using the command mv. Enter this command:

mv coldata.csv-backup backup

This moves coldata.csv-backup into the directory backup/ or the full path would be ~/workshops/lessons/rnaseq/data/backup/coldata.csv-backup

The mv command is also how you rename files. Since this file is important, let's rename it:

ls
mv coldata.csv coldata-IMPORTANT.csv
ls

Now let's delete the backup copy:

ls
ls backup
rm backup/coldata.csv-backup
ls
ls backup

The rm file removes the file. Be careful with this command. It doesn't just nicely put the files in the Trash. They're really gone.

EXERCISE 9

Do the following:

  1. Rename the coldata-IMPORTANT.csv file back to coldata.csv.
  2. Create a new directory in the rnaseq directory called new.
  3. Then, copy the coldata.csv file into new

By default, rm, will NOT delete directories. You can tell rm to delete a directory and everything in it recursively using the -r option. Let's delete that new directory we just made. Enter the following command:

rm -r new

Be careful with this.

Writing files

We've been able to do a lot of work with files that already exist, but what if we want to write our own files. Obviously, we're not going to type in a FASTA file, but there are a lot of reasons we'll want to edit a file.

To write in files, we're going to use the program nano. We're going to create a file that contains the favorite grep command so you can remember it for later. We'll name this file 'awesome.sh'.

nano awesome.sh

Enter the following into the file:

grep -B 1 -A 2 GATTACA *.fastq

At the bottom of nano, you see the "^X Exit". That means that we use Ctrl-X to exit. Type Ctrl-X. It will ask if you want to save it. Type y for yes. Then it asks if you want that file name. Hit 'Enter'.

Now you've written a file. You can take a look at it with less or cat, or open it up again and edit it.

EXERCISE 10

Open awesome.sh and add echo AWESOME! after the grep command and save the file.

We're going to come back and use this file in just a bit.

Running programs

Commands like ls, rm, echo, and cd are just ordinary programs on the computer. A program is just a file that you can execute. The program which tells you the location of a particular program. For example:

which pwd

Will return "/bin/pwd". Thus, we can see that pwd is a program that sits inside of the /bin directory. Now enter:

which find

You will see that find is a program that sits inside of the/usr/bin directory.

So ... when we enter a program name, like ls, and hit enter, how does the shell know where to look for that program? How does it know to run /bin/ls when we enter ls. The answer is that when we enter a program name and hit enter, there are a few standard places that the shell automatically looks. If it can't find the program in any of those places, it will print an error saying "command not found". Enter the command:

echo $PATH

This will print out the value of the PATH environment variable. Notice that a list of directories, separated by colon characters, is listed. These are the places the shell looks for programs to run. If your program is not in this list, then an error is printed. The shell ONLY checks in the places listed in the PATH environment variable.

Remember that file where we wrote our favorite grep command in there? Since we like it so much, we might want to run it again, or even all the time. Instead of writing it out every time, we can just run it as a script. Let's try to run that script:

awesome.sh

You should get an error saying that awesome.sh cannot be found. That is because the directory ~/workshops/lessons/rnaseq/data is not in thePATH. You can try again to run the awesome.sh program by entering:

./awesome.sh

Alas, we get -bash: ./awesome.sh: Permission denied. This is because we haven't told the computer that it's a program that can be executed. To do that we have to make it 'executable'. We do this by changing its mode. The command for that is chmod - change mode. We're going to change the mode of this file, so that it's executable and the computer knows it's OK to run it as a program.

To run a program, you have to set the right permissions, make it executable rather than just a text file.

chmod +x awesome.sh
ls -l

Now we can run the program

./awesome.sh

Now you should have seen some output, and of course, it's AWESOME! Congratulations, you just created your first shell script!

EXERCISE 11

  1. In the data directory, use nano to write a script called quickpeek.sh that:
    • Runs head on all the fastq files in the current directory
    • Runs wc on all the fastq files
    • echos "Done!" when finished.
  2. Make the program executable.
  3. Run the program.

Simple parallel computing with find and parallel

We've learned how to do a few things already using wildcards. For instance, we extracted all the fastq files with

gunzip *.fastq

which the shell interpreted the same as:

gunzip ctl1.fastq  ctl2.fastq   ctl3.fastq  uvb1.fastq  uvb2.fastq  uvb3.fastq

But what if we wanted to do something more complicated on lots of files, and do it in parallel across multiple processors? For example, what if we wanted to pull out all the reads containing the "GATTACA" motif from each file independently and write those all to separate files for each read?

We can't just do something like:

grep GATTACA *.fastq > gattacareads.txt

Because that would write one big file with all the GATTACA reads from all the files smashed together. What we want to do is something like this:

grep GATTACA ctl1.fastq > ctl1.fastq.gattaca.txt
grep GATTACA ctl2.fastq > ctl2.fastq.gattaca.txt
grep GATTACA ctl3.fastq > ctl3.fastq.gattaca.txt
grep GATTACA uvb1.fastq > uvb1.fastq.gattaca.txt
grep GATTACA uvb2.fastq > uvb2.fastq.gattaca.txt
grep GATTACA uvb3.fastq > uvb3.fastq.gattaca.txt

Now, for one, that's a lot of typing. What if you had 100 fastq files you wanted to do this with? And secondly, while this is example data and things run pretty quickly, what if each of these files were 10s of gigabytes, having millions of reads in each? Each grep command would take a few minutes to run. But most modern computers have multiple processors or cores in them, and we should be able to take advantage of that and send out each of those processes to a separate core to be done in parallel.

find

The UNIX find command is a simple program can be used to find files based on arbitrary criteria. Go back up to the parent rnaseq directory, and type this command:

find .

That prints out all the files and directories, and everything in those directories, recursively. Let's print out only files with the -type f option:

find . -type f

Now, let's limit the search to find only fastq files with the -name option. Here, we just pass in quotes the pattern to match. Here it's anything that ends with .fastq.

find . -name "*.fastq"

That will find anything ending in .fastq living in any directory down from where we are currently standing on the filesystem.

find | parallel

Now, what if we wanted to actually do something with those files? There are a few ways to do this, but one we're going to use today involves using a program called parallel. If you run the find command and pipe the output of find into parallel, you can run arbitrary commands on the input files you found. Let's do a --dry-run so parallel will only show us what would have been run. Let's run a fake example:

#first find the files
find . -name "*.fastq"
# then pipe to parallel with dry run
find . -name "*.fastq" | parallel --dry-run "dowhatever {}"

dowhatever ./data/ctl1.fastq
dowhatever ./data/ctl2.fastq
dowhatever ./data/ctl3.fastq
dowhatever ./data/uvb1.fastq
dowhatever ./data/uvb2.fastq
dowhatever ./data/uvb3.fastq
  • First, we're running the same find command as before. Remember, this prints out the path for all the fastq files it found, with the path relative to where we ran the find command.
  • Next, we're calling the parallel program with the --dry-run option. This tells parallel to not actually run anything, but to just tell us what it would do.
  • Next, we have the stuff we want to run in parallel inside the quotes.
  • The open/closed curly braces {} is a special placeholder for parallel, which assumes the values of whatever was passed in on the pipe. In this example, each of the fastq files found by find will take the place of {} wherever it's found.

Let's try one for real. Let's get the word count of all the fastq files in parallel.

# First find the files
find . -name "*.fastq"

# Next do a dry-run to see what would be run
find . -name "*.fastq" | parallel --dry-run "wc {}"

# Finally, run the commands in parallel
find . -name "*.fastq" | parallel "wc {}"

What if we wanted to do something like search for a particular nucleotide sequence like "GATTACA" inside of each file, pull out those sequences, and write those to a separate results file for each input?

# First find the files
find . -name "*.fastq"

# Next do a dry-run to see what would be run
find . -name "*.fastq" | parallel --dry-run "grep GATTACA {} > {}.gattaca.txt"

# Finally, run the commands in parallel
find . -name "*.fastq" | parallel "grep GATTACA {} > {}.gattaca.txt"

When you do the dry run, you'll get something like that looks like this:

grep GATTACA ./data/ctl1.fastq > ./data/ctl1.fastq.gattaca.txt
grep GATTACA ./data/ctl2.fastq > ./data/ctl2.fastq.gattaca.txt
grep GATTACA ./data/ctl3.fastq > ./data/ctl3.fastq.gattaca.txt
grep GATTACA ./data/uvb1.fastq > ./data/uvb1.fastq.gattaca.txt
grep GATTACA ./data/uvb2.fastq > ./data/uvb2.fastq.gattaca.txt
grep GATTACA ./data/uvb3.fastq > ./data/uvb3.fastq.gattaca.txt

These are the commands that would be run in parallel if you didn't use the --dry-run flag. Now, if we go back and re-run that command without the --dry-run flag.

EXERCISE 12

  1. cd into the data directory and take a look at what files were created.
  2. Open up one of the new files with less and use the / key to search for the "GATTACA" motif. Does it actually occur on every line?
  3. Use rm to delete all the files ending with .gattaca.txt.

Installing software

There are a few different ways to install software. We're using an Ubuntu Linux distribution, and Ubuntu has a very nice software package management system called apt. You can read more about it at the online documentation. For what we'll do later on we'll need java, which isn't installed by default. If we try running which java, we'll see nothing is returned. If we try running java, Ubuntu will suggest a packages that we might try downloading to get java enabled. We'll want the default Java Runtime Environment. We install software with a package manager called apt. Before installing software we need to tell the system to update the places it looks to get software. We do this with the update command to apt-get. To install software we need to temporarily elevate our permissions to the level of the "super user". We do this temporarily by prefacing any command we want to run as super user with the command sudo. Let's install Java.

which java
java
sudo apt-get update
sudo apt-get install default-jre
java

Where can I learn more about the shell?
